How To Find Plastic Section Modulus

To calculate the section modulus the following formula applies. Apply one of the following formulas for the plastic modulus z based on the geometry of the beam you re dealing with. Section modulus equations and calculators.

what was sectionalism in the 1800s white section when can i vacuum after c section when do you have a planned c section write the economic analysis section of a business proposal what to expect with a scheduled c section writing the results section of a research paper what is the first section of the large intestine

Unequal I Beam Geometric Properties

Solved Determine The Plastic Section Modulus Wp And Plast Chegg Com

Rectangle Geometric Properties

Elastic And Plastic Section Modulus And Moments For A T Beam Youtube

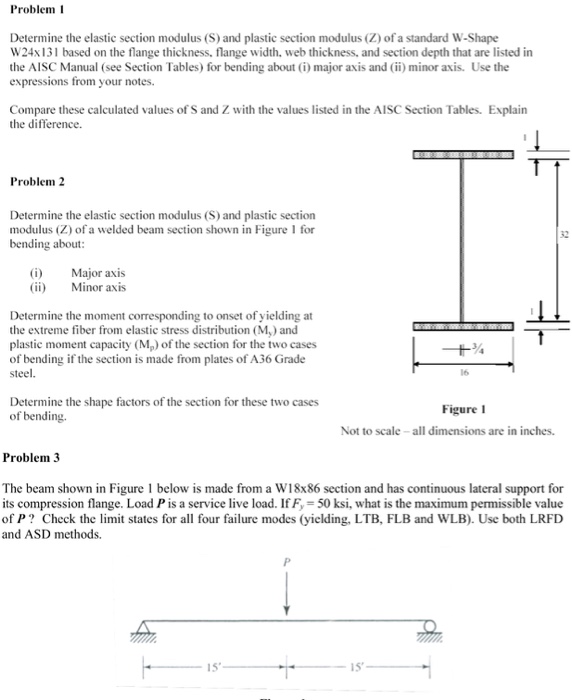

Solved Determine The Elastic Section Modulus S Plastic Chegg Com

Elastic Section Modulus Demonstration Youtube

Section properties radius of gyration cases 1 10.

How to find plastic section modulus. The plastic section modulus is used to calculate the plastic moment m p or full capacity of a cross section. In that case the whole section is divided in two parts one in tension and one in compression each under uniform stress field. For symmetrical sections the value of z is the same above or below the centroid.

Z max and z min. Where i moment of inertia y distance from centroid to top or bottom edge of the rectangle. Plastic modulus the plastic section modulus is similar to the elastic one but defined with the assumption of full plastic yielding of the cross section due to flexural bending.

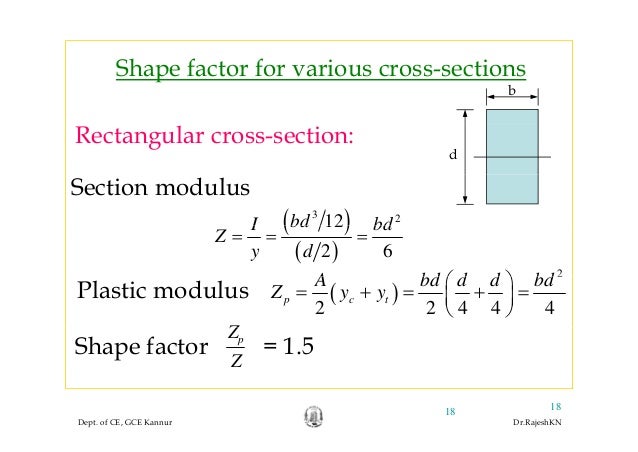

The two terms are related by the yield strength of the material in question f y by m p f y z. The plastic section modulus is then the sum of the areas of the cross section on each side of the pna which may or may not be equal multiplied by the distance from the local centroids of the two areas to the pna. Zx b h 2 h 4 b h 2 h 4 bh2 4.
